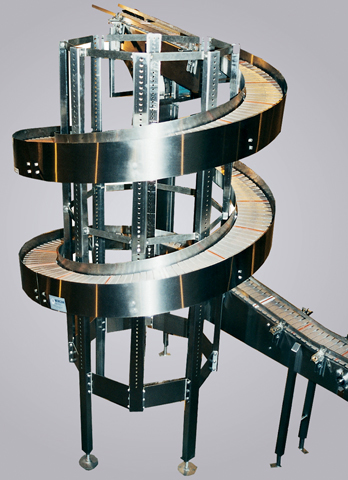

Spiral Conveyor

The Spiral conveyor is a compact and versatile elevating solution. Spiral can be designed to carry product between floors and machines or over aisles.

Designed with a uniform slope, the Spiral conveyor ensures smooth operation without disturbing the product. A continuously moving table-top belt gently elevates or lowers the product.

Operating speeds up to 150 feet per minute are attainable depending upon the height change and product size and weight.

The Spiral conveyor is adaptable to customer requirements. Multiple lanes, slope and belt widths are available ranging from 3 1/4" to 15" (double 7 1/2"). The in-feed and discharge location is also variable depending on the application.

Product Handling Applications

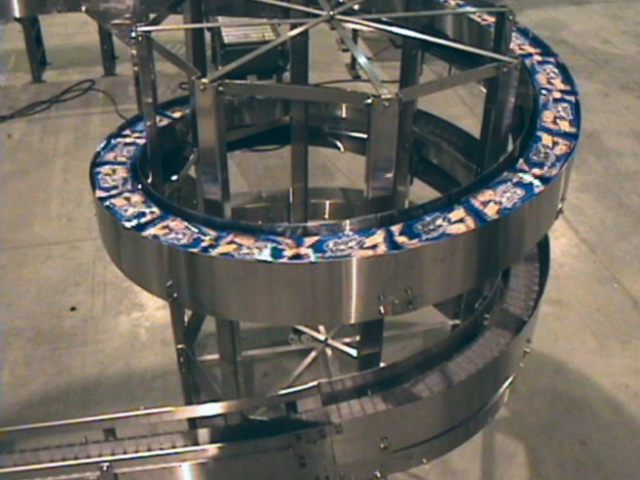

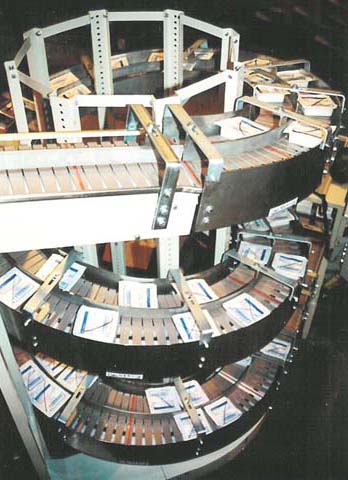

The Spiral conveyor is suited for fragile products that cannot handle impact or gripping. The equipment has been engineered to handle pies, trays, small packages, boxes and plastic containers.

Photo Gallery
Videos

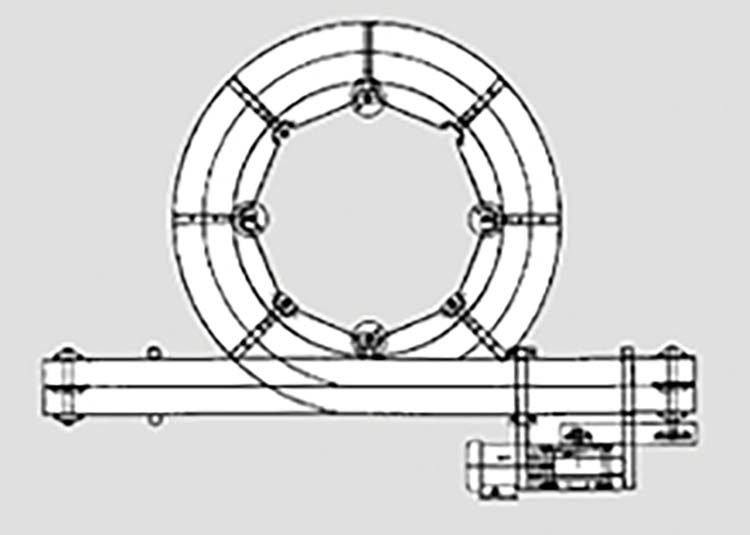

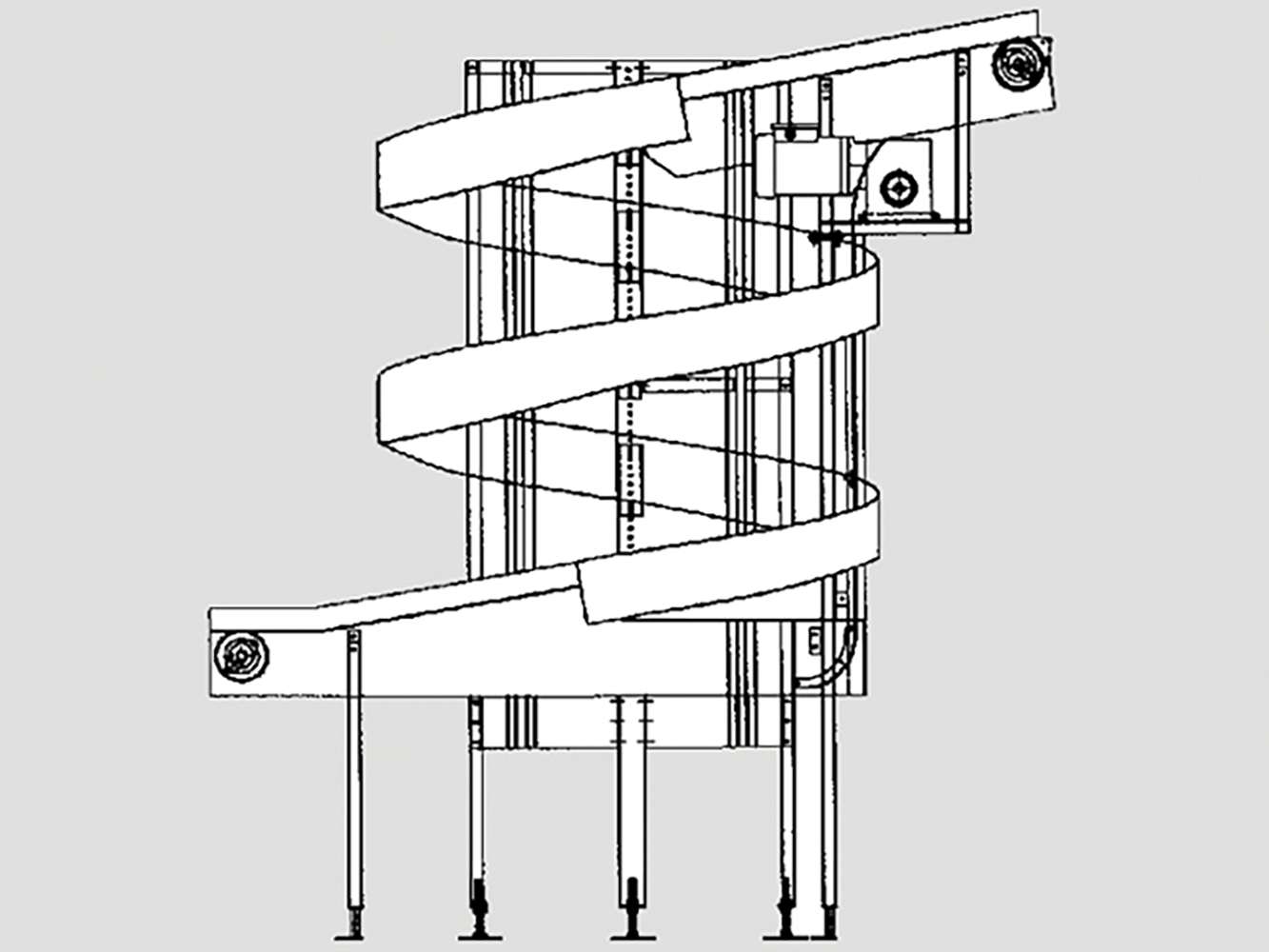

Illustrations
Industries

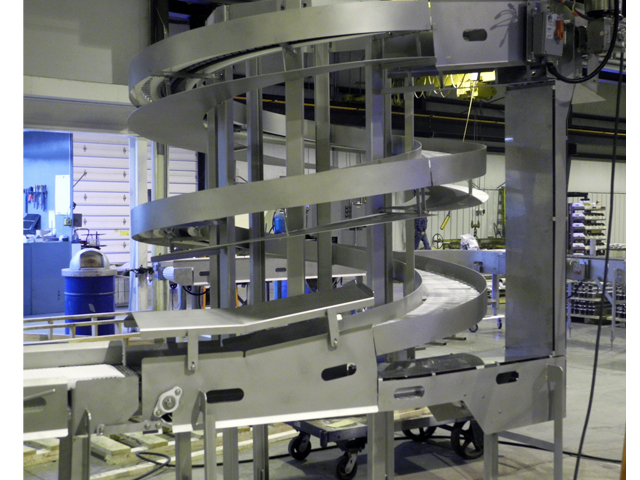

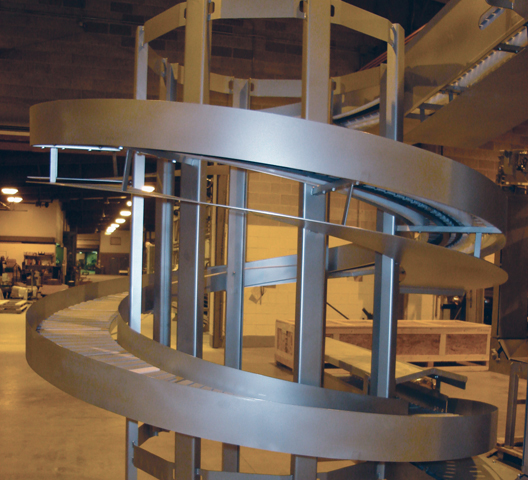

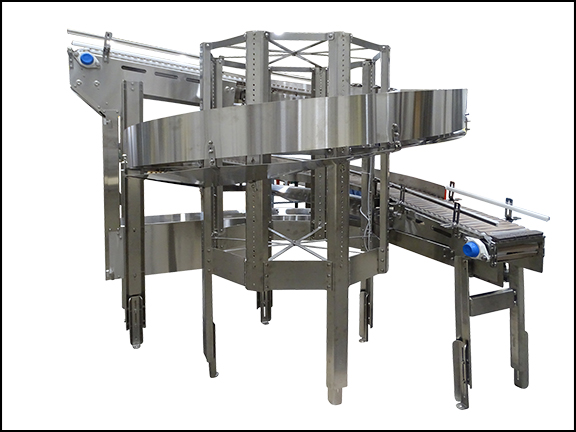

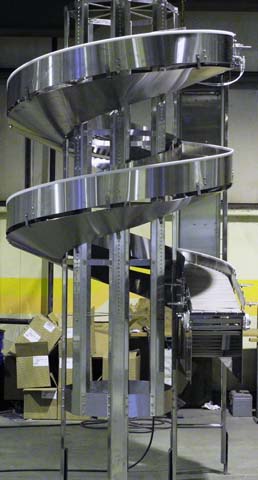

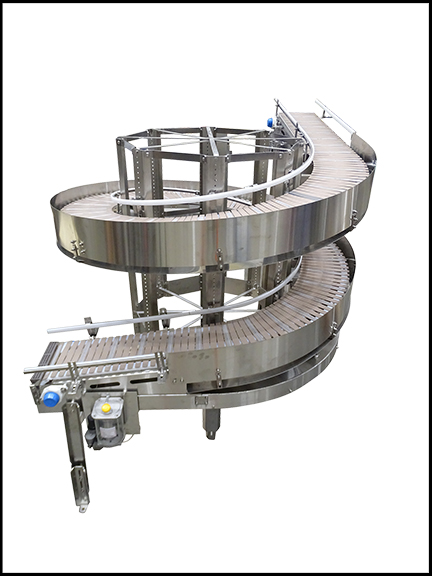

Spiral Conveyor

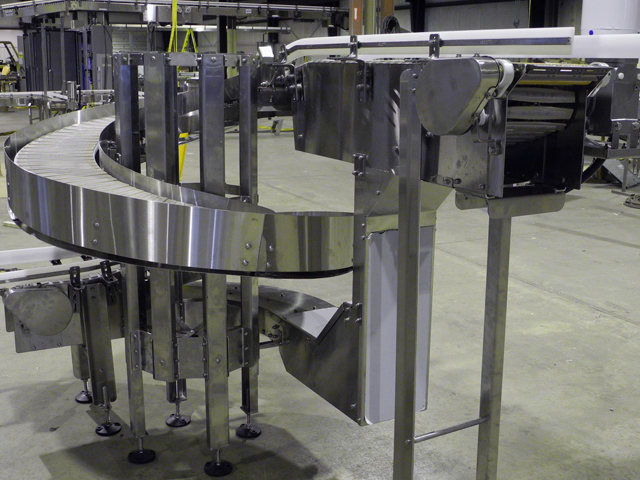

Low Rise Spiral Conveyor

Spiral Conveyors are a compact and versatile elevating solution. This Spiral Conveyor has the flexibility for three different case sizes to be conveyed without any changeover.
